Dedicated to delivering the best technology and service to you DEUV Laser Machines: Unleashing Precision in Advanced Packaging – Perfecting TGV Formation, Micromachining, and Material Integrity for the Future of Electronics.  |
Highly Controllable Via Size

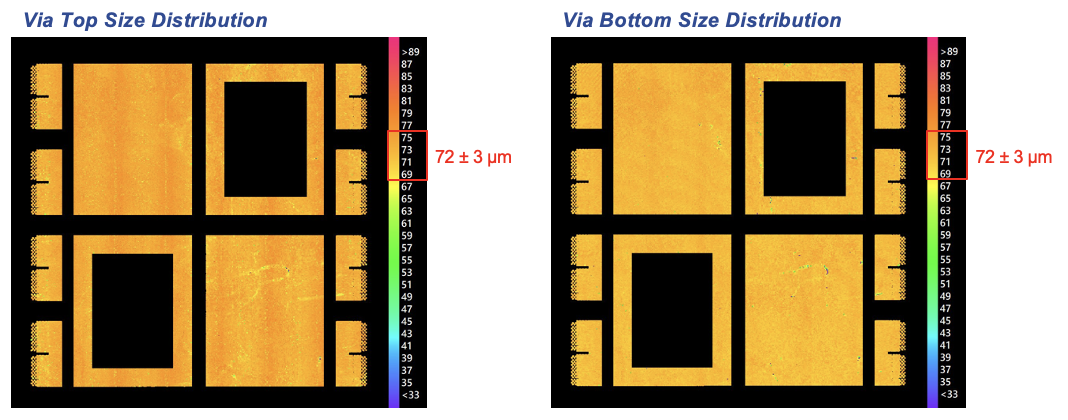

Number of Via : 140,916 Via Diameter: 72 µm *Inspected by proprietary 3D TGV NIR tool

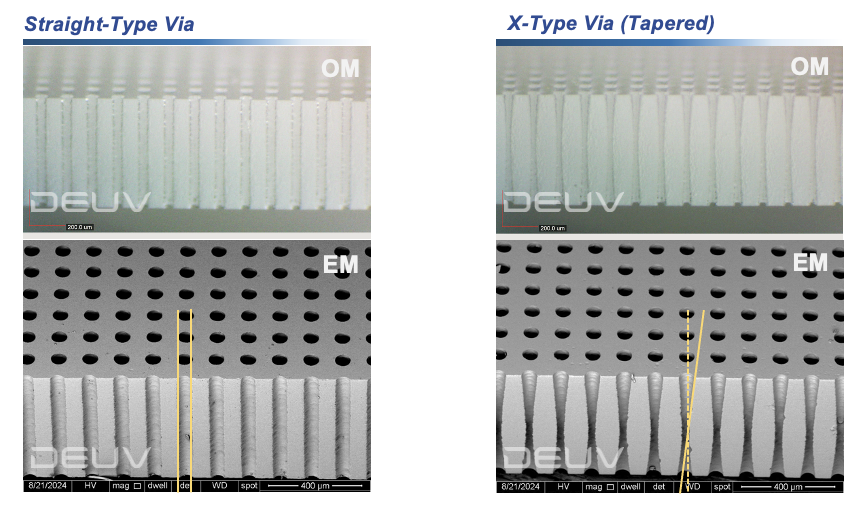

Controllable Via Shape

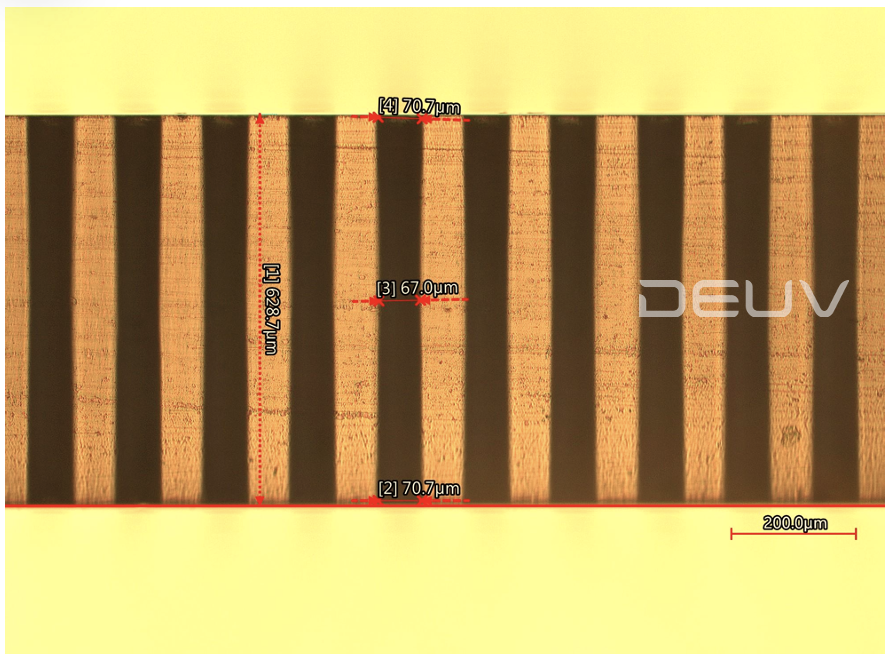

Straight-Type Via : Example
Material：Borofloat 33
Glass Thickness：628.7 µm
Via Diameter (Top)：70±3 µm
Via Diameter (Middle)：68±3 µm
Via Diameter (Bottom)：70±3 µm
Aspect Ratio：~9
Position Accuracy：±2 µm

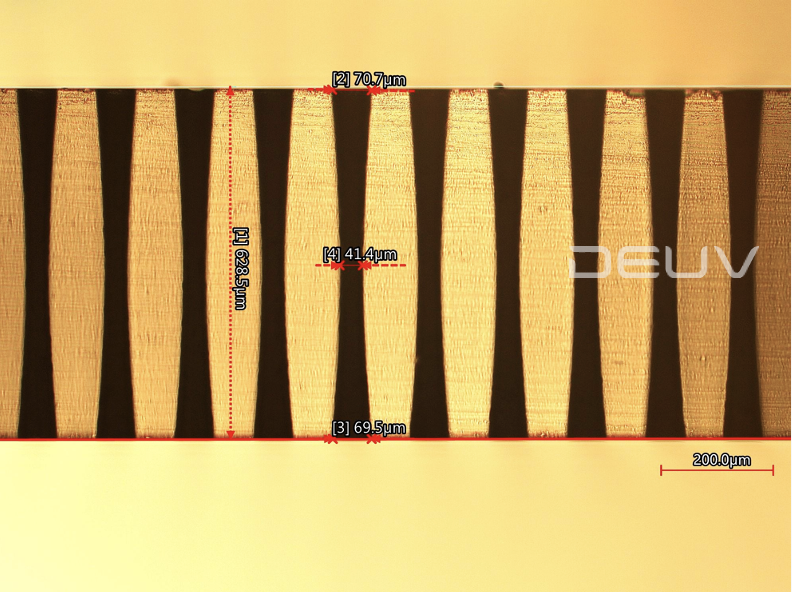

X-Type Via : Example
Material：Borofloat 33
Glass Thickness：628.5 µm
Via Diameter (Top)：70±3 µm
Via Diameter (Middle)：40±3 µm
Via Diameter (Bottom)：70±3 µm
Aspect Ratio：~9
Position Accuracy：±2 µm

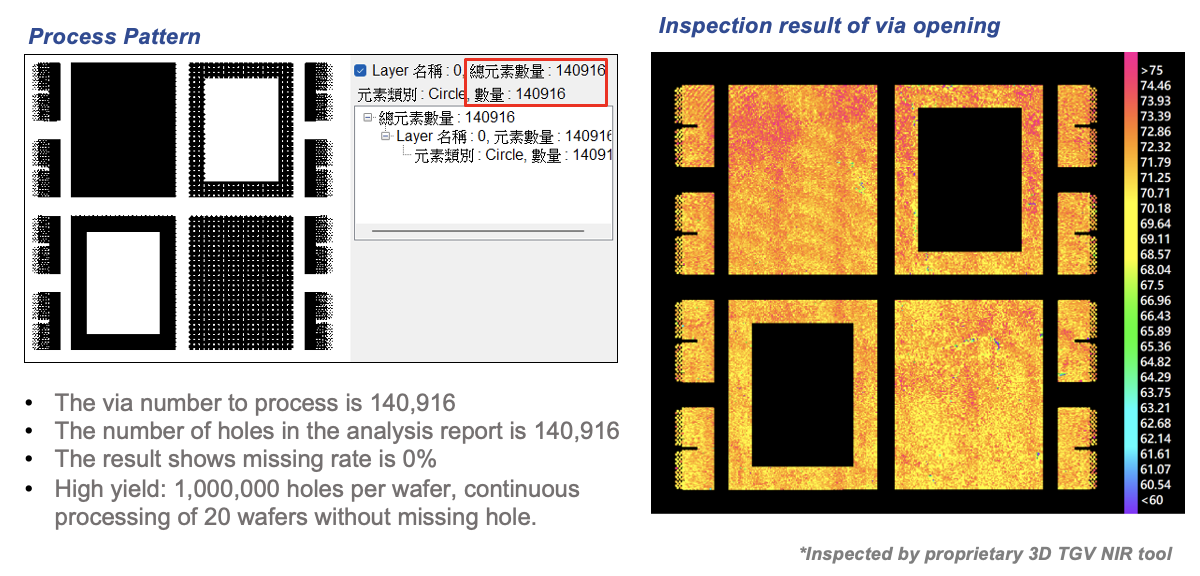

Scalable Process with High Yield Rate

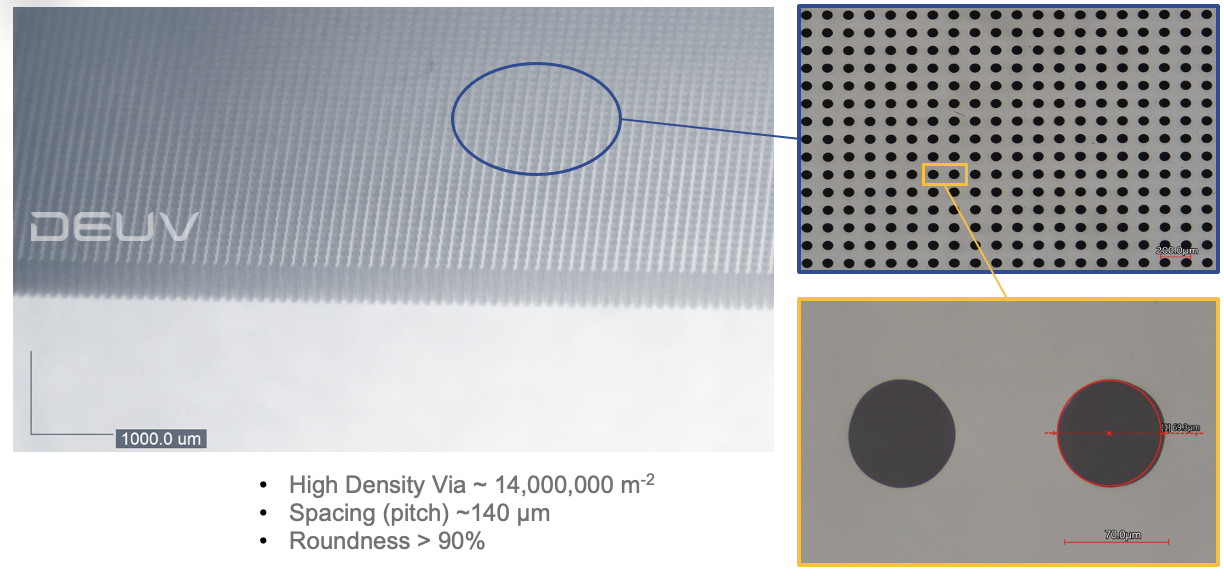

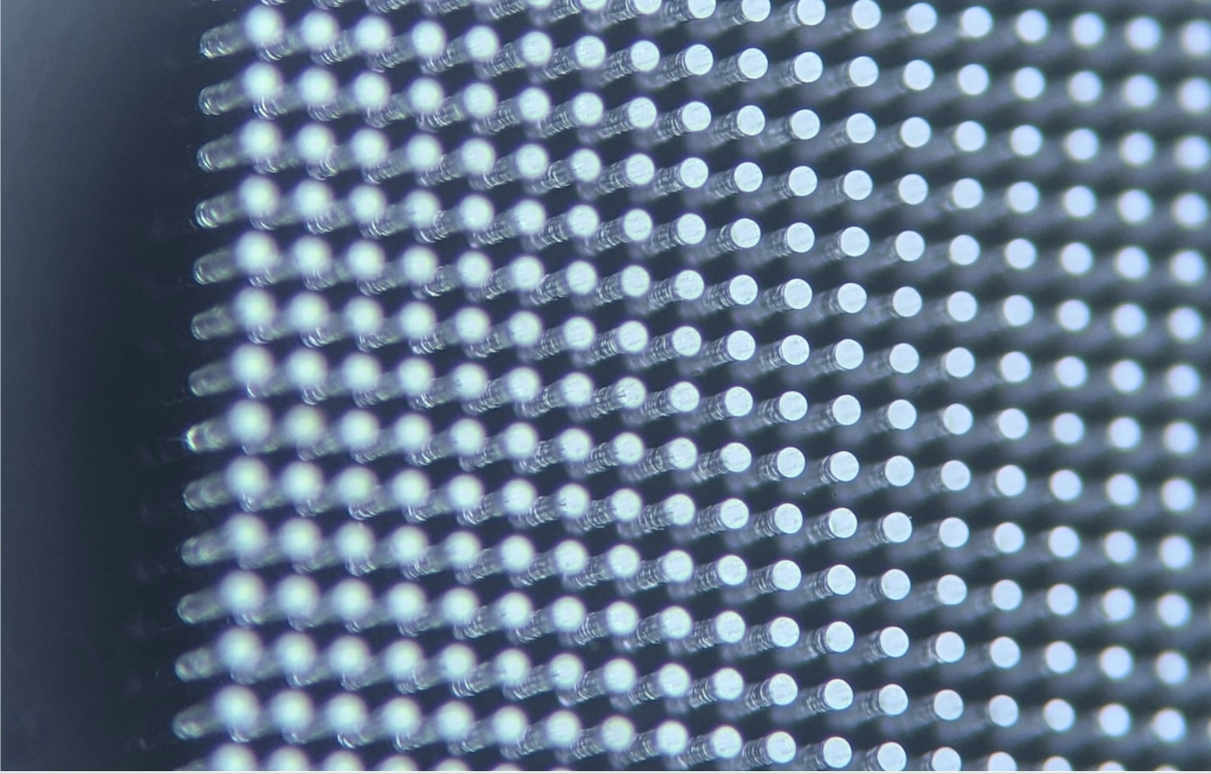

High Density Via Formation
